Name: BMH2000 Series Feed Beam Profile Aluminium Extruded Profiles For Tunneling Mining Industries
Brand: Chongqing Huanyu Aluminum Material Co., Ltd.
SKU: HYAFB6000
Price: 4,543.00 USD
Availability: InStock

Huis > producten > Profielen van aluminiumbalken >

BMH2000 Series Feed Beam Profile Aluminium Extruded Profiles For Tunneling Mining Industries

BMH2000 Series aluminum feed beam profiles

extruded aluminum profiles for tunneling

mining industry feed beam profiles

Place of Origin:

People's Republic of China

Merknaam:

HUANYU

Model Number:

HYAFB6000

Contact de V.S.

Verzoek om een Citaat

Productdetails

Het Type van voerstraal:

281 JUMBOboomer

Lengte:

4 meter

Matchining:

Hangt van de Vraag van de Koper af

Materiaal:

De Legering van het 7000 Reeksenaluminium

Sollicitatie:

DE HYDRAULISCHE INSTALLATIE VAN DE ROTSboring

Netto Gewicht per Meter:

22,3 Kilogram per Meter

Oppervlak:

Molenafwerking

Betaling & het Verschepen Termijnen

Minimum Order Quantity

5 Units

Prijs

negotiable

Packaging Details

Plywood Case Length 610cm

Delivery Time

Immediately

Payment Terms

T/T, T/T

Supply Ability

30 Units/Month

VERWANTE PRODUCTEN

Contact de V.S.

+8617353269062

Smp.ite01@gmail.com

86-023-65820299-104

Contact nu

Productbeschrijving

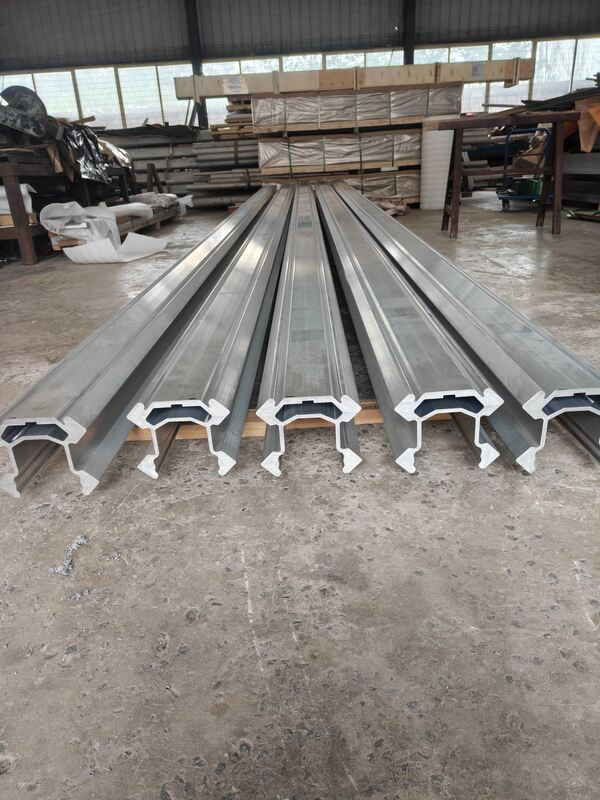

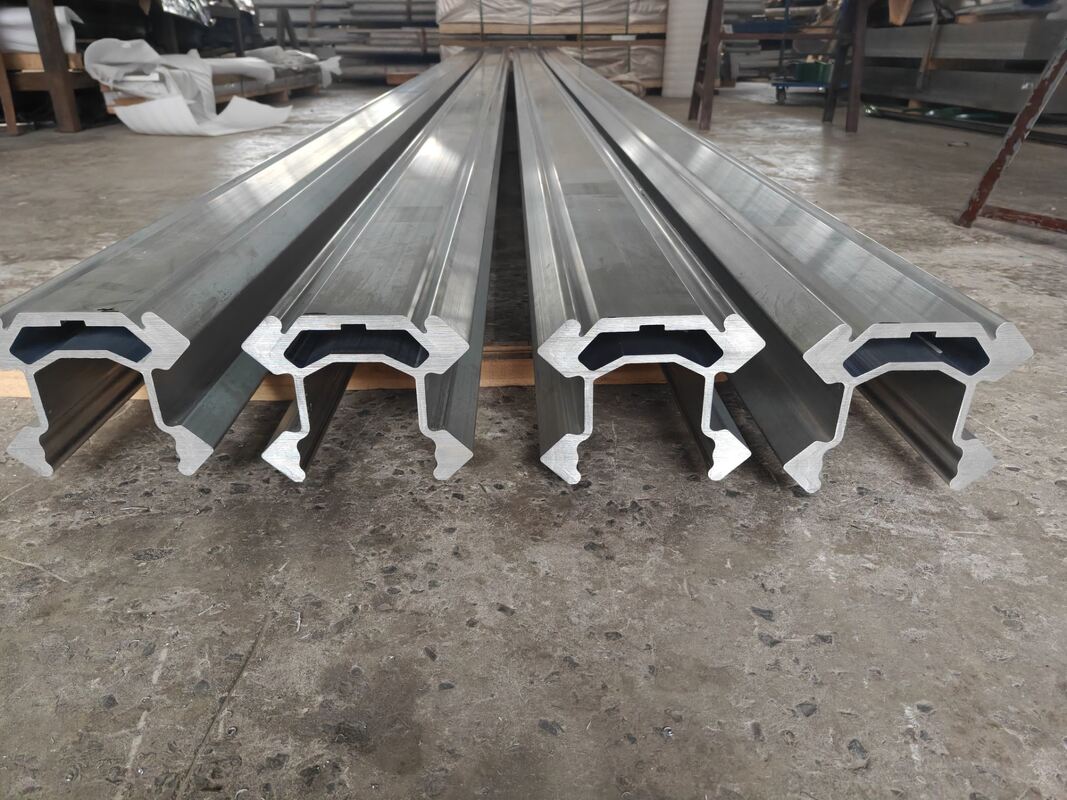

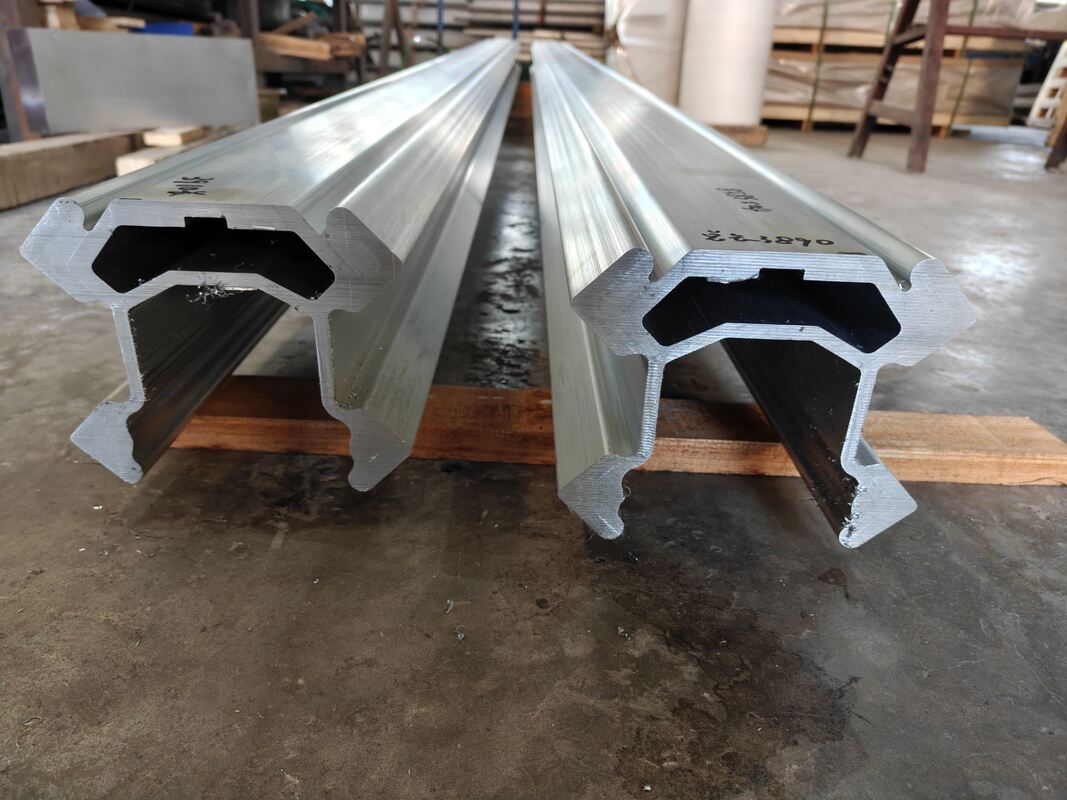

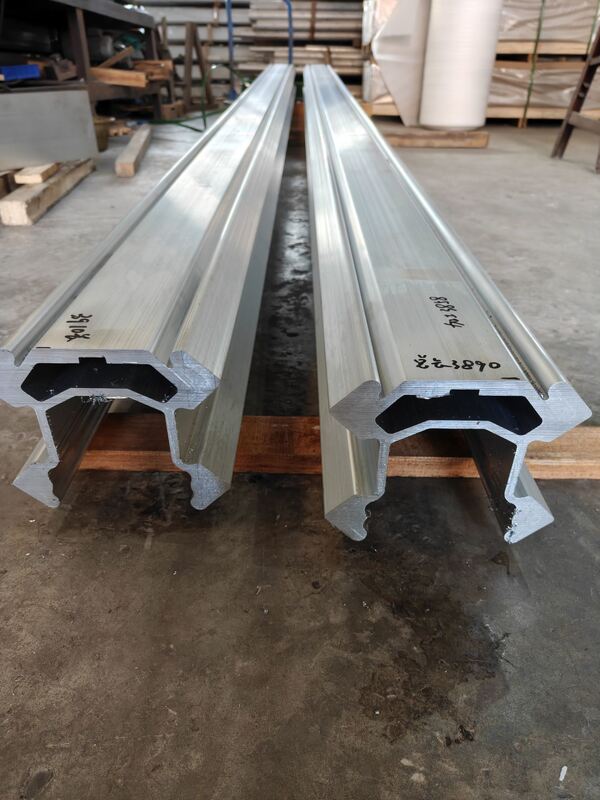

BMH2000 Series Feed Beam Profile Aluminium Extruded Profiles For Tunneling Mining Industries

FEATURES

1. Material: Aluminum Alloy 7000 Series ; Heat treatment T6
2. Compliant with: GB/T6892-2006
3. Tolerance: twist degree--- less than 1degree per meter and 5 degrees for whole length;

curvature--- less than 1mm per meter and 5mm for whole length
4. Mechanic: σb≥320MPa, σ0.2≥270MPa, δ5≥8%
5. The surface is free from manufacturing defects, such as nicks, dings, scratches .

6. Length Option: ranging from 2,100mm to 6,800mm

7. Atlas Feed Beam can be machined as per buyers' demand

8. Net Weight: 22.3kgs/meter

9. Package : Plywood case for Feed Beam

10. Standard Single package size: Length x Width x Height = 438cm X24cm X29 cm

SPECIFICATIONS

Material Option	Aluminum Alloy 7000 Series
Heat Treatment	T6 Temperature
Standards	GB/T6892-2006
Mechanic	σb≥320MPa, σ0.2≥270MPa, δ5≥8%
Feed Beam Surface	Free from manufacturing defects, such as nicks, dings, scratches
FB Length Option	Standard 14FT (4267mm)/ Ranging from 2100mm to 7100mm
Longitudianl Deviation	1 mm/meter for longitudinal deviation and less than 5 mm for the entire length

BMH2000 Series Feed Beam Profile Aluminium Extruded Profiles For Tunneling Mining Industries 0

BMH2000 Series Feed Beam Profile Aluminium Extruded Profiles For Tunneling Mining Industries 1
